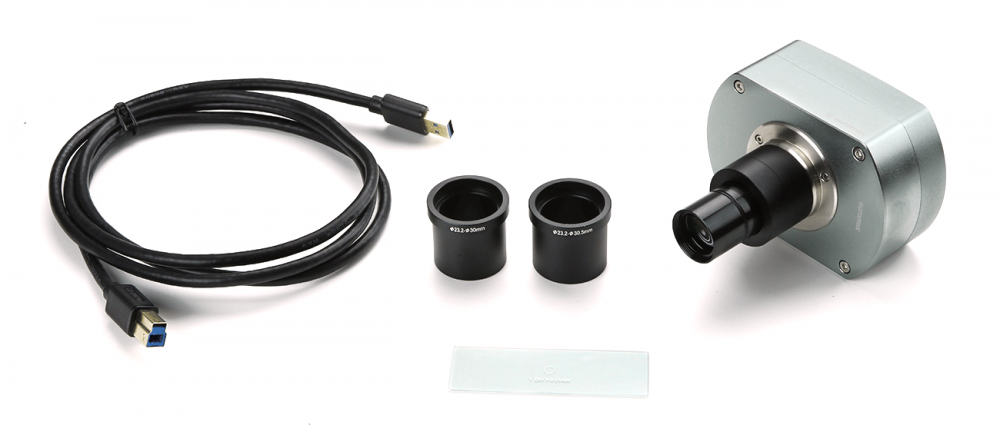

SPECIFICATIONS Sensor sCMOS SONY Exmor R Scan type Progressive type blind Filter RGB Mount C-Mount Exposure Automatic or manual White Balance Auto or manual Connection High-speed USB3.0 Temp. working -10~50°C, 30-80 % humidity Temp. storage -20 ~ 60°C Power 5V from USB port of computer Structure aluminum Alloy CNC integrated Supplied with Tube adapter 23,2 mm to thread “C” by a factor of 0.5 x (sCMEX-6), USB cable, 3 adapters to 30 and 30.5 mm for stereo microscopes, calibration of 76x24 mm (1mm/100), CD ROM with program ImageFocus Alpha, Box of carton. Program ImageFocus Alpha, a program to capture images and video, analysis of images. Compatible with Windows operating systems 7/ 8/ 10 (configurations 32 and 64 bit). Requirements PC : Compatible with Intel Core 2, 2.8 GHZ processor or higher, 2GB, USB port-3 and a screen of 17”. Compatible with Mac OS but only for capturing images and videos. Model Number pixels (million) Sensor Size sensor (inches) Size pixel (micron) Resolution Time Exposure Maximum frames per second Conversion of gray Color depth Sensitivity V/Lux sCmex-6 6.3 sCMOS 1/1. 8” 2.5 x 2.5 3072 x 2048 1536 x 1024 0.244 ~ 15000 ms 30 38 16-bit 36-bit 0.15
